Heavy Duty Dual Pin

Heavy Duty Dual Pin

普通商家

热门推荐

产品详情

产品图片

Our heavy duty dual pin attachment is designed with upper and lower chrome slide bars.

The dual bar design allows intergrated sideshift through the hydraulic cylinders to be activated with the forks loaded.

The sliding action is sometimes prefered to the track roller system of fork positioning (see heavy duty integral) as the bearings are not as susceptable to occasional high side loading on the fork tips.

The pin arrangement however has more mass than an equivalent track roller version.

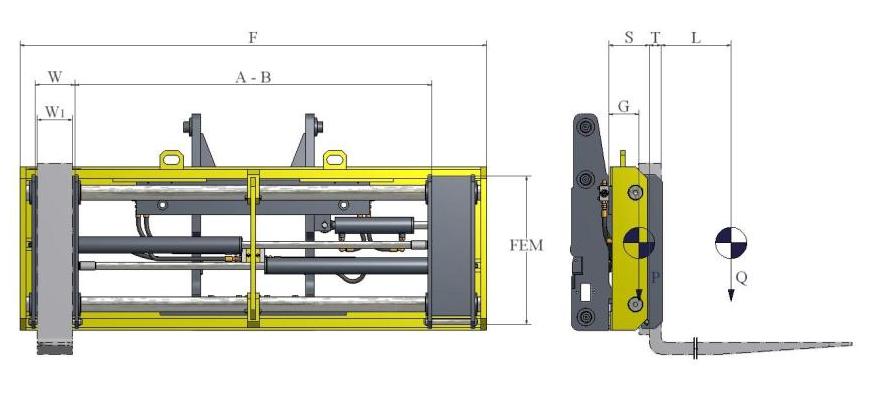

Model No SRS Cat No Ref No Capacity P (kg) Load Centre LC (mm) Mass Q (kg) Centre of Gravity CGh (mm) Lost Load Centre LLC (mm) Class Opening Range A-B Chassis Width F Fork Section Max W x T FEM De-rating Calculator
P60LI 1 0001  5000 600 670 160 272 NONE 150-1550 2000 150x60 4A view calculator
P96LI 1 0001  8000 600 1015 192 341 NONE 150-1770 2220 180x60 4A view calculator
